Features and Functions

• For use on exterior doors where keyed entry and security is needed

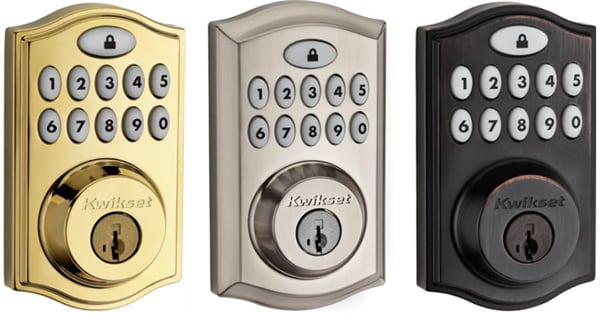

• Available in three colors: Polished Brass, Satin Nickel and Venetian Bronze
• Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• Locking mechanism functions with turn piece on the interior of the lock
• Connect to your Control or Pulse system via Z-Wave to unlock/lock the door

• Use Control or Pulse to assign individual user codes to track who locks/unlocks a door
• Within the Control or Pulse app,
  • Create rules to disarm/disarm your system when the door is unlocked/locked, or lock all doors when one is locked
  • Create a Notification to be alerted when a door is locked/unlocked

CONTROL

Control app

• Lock or unlock a door from the Door icon on the dashboard

Control Portal

• To create a rule to lock or unlock the door, such lock the door when the system is armed, or lock all doors when one is locked
  1. Log into the Control portal
  2. Click Automations
  3. Click Rule
  4. Click Add Rule
  5. Select Event-triggered Rule
  6. Select the criteria for the rule, then click Save


• To create a Notification to be alerted when a door is locked/unlocked
  1. Log into the Control portal
  2. Click on Notifications
  3. Click on New Notification
  4. Select Lock Activity
  5. Select the criteria and recipients for the alert, and, then click Save

PULSE

Pulse app

1. Tap the Lock tile on the dashboard, or tap the hamburger menu, then tap Locks
2. Tap to lock/unlock the door

Pulse Portal

• Quick Rules are a predetermined set of rules that can be turned on or off. To use Quick Rules to set up a rule to disarm the Security Panel when a door lock is unlocked using the keypad
  1. Log into the Pulse portal
  2. Click on Rules
  3. Click on Quick Rules
  4. Locate the Door Lock rule and click the On/Off button to turn the rule on or off


• Automations can be used to create your own rules, to turn the lock/unlock a door when certain events occur
  1. Log into the Pulse portal
  2. Click on Rules
  3. Click on Automations
  4. Click on Add Automation
  5. Select the criteria for the automation, then click Save


• To create an Alert to be notified when a door is locked/unlocked
  1. Log into the Pulse portal
  2. Click on Alerts
  3. Click on Add Alert
  4. Select the criteria for the alert, then click Save

Installation and Setup

Congratulations on your new Kwikset 914 Smart Doorlock

Follow the instructions below to install your door lock, and link it to your Control or Pulse accoount.

Download the Kwikset Installation and User Guide

1. Prepare the door and check dimensions
2. Install the latch and strike
3. Install the exterior keypad
4. Install the interior assembly
5. Set locking and unlocking direction
6. Add the lock to your Control or Pulse system
   • Control
     1. Open your Control app
     2. Tap the hamburger menu on the upper left
     3. Tap Add Device
     4. Tap Lock
     5. Tap Kwikset 914 Deadbolt
     6. Follow the on-screen prompts to link your device
   • Pulse
     1. Open your Pulse app
     2. Tap the Manage Devices tile. If you do not see the tile, tap the hamburger menu in the upper left. Tap Settings, then tap Manage Devices.
     3. Tap Add
     4. Follow the on-screen prompts to link your device
7. Add User Codes
   • Control. Always add the user codes in Control so that they can be reported and tracked by your ADT system. This action must be performed by the Master User.
     1. Open your Control app
     2. Tap the hamburger menu on the upper left
     3. Tap Users
     4. Tap the three dots for the user
     5. Tap Edit
     6. Tap to assign the user to a specific lock
     7. Tap Save
   • Pulse. Add the User Codes per the manufacturer instructions
8. Test the lock
9. Install the interior cover

Troubleshooting

For additional information, download the manufacturer's user manual.
